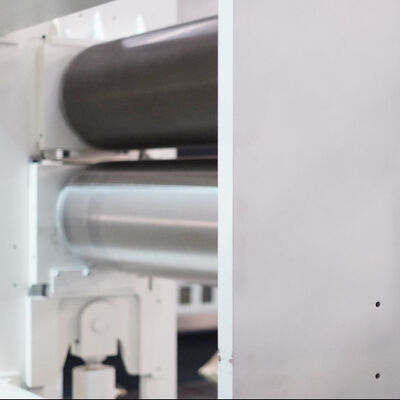

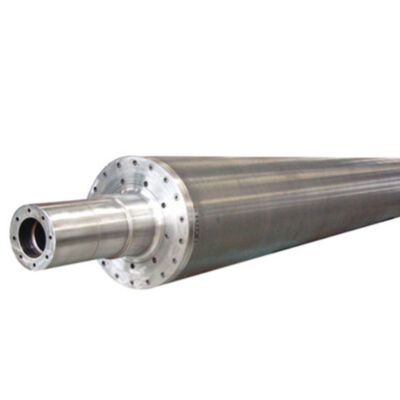

High Thermal Efficiency Heating Calender Roll For Non Woven Line
Non-woven Heating Calender Roll Material
All high-quality alloy steel (38CrMOa i, 42CrMo, 60CrMo, 9Cr2Mo) is used as the base material, formed by mechanical processing and heat treatment. Surface hardness HRC58~62.
Non-woven Heating Calender Roll Heating Method
Hollow inner liner spiral heating:
Drill deep holes in the forging, install spiral liner or spray liner in the middle space, so that the heat transfer oil flows (or sprays) in a directional manner in the spiral liner to achieve heating. Temperature difference ≤1.5°C.
Peripheral drilling heating:
Drill deep holes evenly around the roller body to make the heat transfer oil circulate and flow in the peripheral holes for heating, with a smaller temperature difference (<1°C) and higher thermal efficiency.
Non-woven Heating Calender Roll Pattern
- Can be engraved into any regular and irregular patterns such as square dots, round dots, elliptical dots, diamond shapes, cross shapes, stripes, etc. according to user needs
- After quenching and engraving, the hardness layer is > 5mm, while the hardness layer of the original hot rolling roller using nitriding process is only 0.4~0.5mm
- The size and depth of the rolling point remain basically unchanged after long-term use
- Greater advantages: correct pattern, optional pattern, depth and angle
| Heating Method |
Hollow Inner Liner Spiral Heating, Peripheral Drilling Heating |
| Roll Body |
38CrMOa I, 42CrMo, 60CrMo,9Cr2Mo |
| Surface Hardness |
HRC58~62 |
| Temperature Difference |
≤1.5°C |
| Warranty Period |
1 Year |
| HS Code |
8448209000 |
Synchronized with the quality of European hot rolling rollers.
