22kw Dual Purpose Cutting Machine For Static And Non-Destructive Operation

22kw Dual Purpose Cutting Machine For Static And Non-Destructive Operation

Introduction for 22kw Dual Purpose Cutting Machine For Static And Non-Destructive Operation

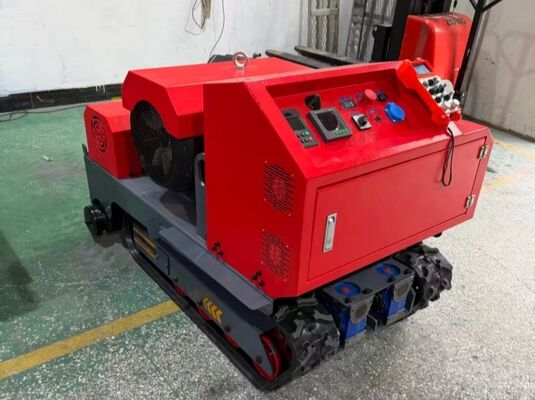

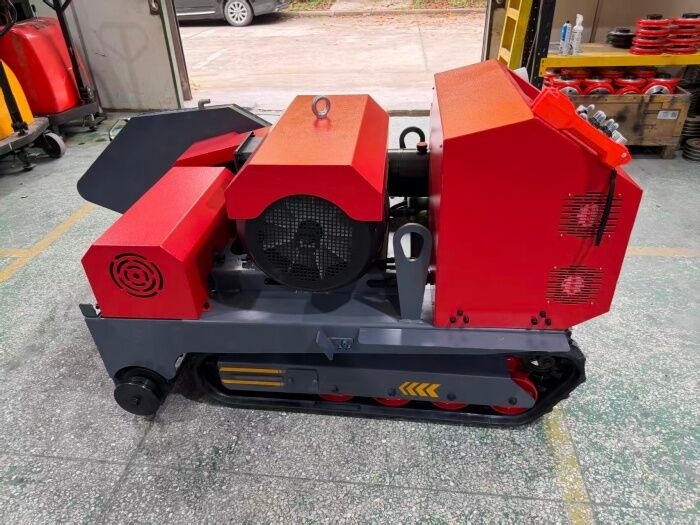

The road cutting + wire saw cutting dual-purpose machine is a dual-frequency conversion

crawler electric device that integrates saw blade road cutting and diamond wire saw
cutting into one unit. Its core features a main motor + dual-frequency conversion
control system + remote control track walking. It can switch between the two modes
with one click without modification, realizing "one machine doing two types of
work".

Data Sheet for 22kw Dual Purpose Cutting Machine For Static And Non-Destructive Operation

Application areas:
1. Municipal Road Engineering (Primarily Road Cutting):
New Roads: Cutting expansion joints in cement/asphalt pavements, ensuring slip
resistance and preventing thermal expansion cracking.
Existing Road Repair: Partial excision and repair of pavement defects (cracks,
potholes), resulting in clean cuts without the need for secondary finishing.
Flooring/Plazas: Grooving and segmentation of concrete floors in parking lots,
factories, and plazas.
Airports/Ports: Straight-line cutting and slab removal of thick concrete (40-50cm).
2. Building Renovation and Demolition (Primarily Wire Saw Cutting):
Support Beam/Waist Beam Cutting: Removal of reinforced concrete support beams
within foundation pits, static cutting, vibration-free, and without damaging the main
structure.
Bridge/Pier Cutting: Demolition of old bridges, renovation of new bridges, cutting
piers, bridge slabs, and railings at any angle, underwater operation possible.
Wall/Column Cutting: Opening doors and windows in shear walls of high-rise
buildings, cutting beams and columns, and renovating staircases.
Floor Slab/Floor Cutting: Indoor floor slab opening, stairwell cutting, thick floor
demolition.
3. Special and Complex Working Conditions (Wire Saw Mode's Advantages Shine)
Underwater Cutting: Underwater reinforced concrete cutting at docks, bridge piers,
and reservoirs; waterproof motors are suitable for underwater operations.
Confined Space Operations: Cutting in narrow areas such as indoor spaces, basements,
and tunnels; the wire saw's flexibility allows it to navigate around obstacles.
Stone/Mining Cutting: Shaping, cutting, and quarrying granite and marble blocks;
smooth cuts and high yield.
Large Equipment Foundations: Demolition of heavy equipment concrete foundations
in industrial plants; cutting thick sections and high-reinforcement content.
4. Emergency and Repair Projects
Road Emergency Response: Rapid cutting, removal, and repair of sudden road
collapses and cracks.
Building Emergency Response: Reinforcement of dangerous buildings, partial
demolition; safe static cutting to avoid collapse risks

Features:
1. Dual Functions, Quick Mode Switching
No disassembly or modification required. One-button switching between road sawing
and diamond wire sawing modes, accommodating both flat kerf cutting and
irregular/thick body cutting.
2. Dual Frequency Conversion Independent Control System
Separate frequency conversion for the main motor and track motor, offering stepless
speed regulation and soft start, smooth start and stop, and built-in overload and stall
protection.
3. Crawler Movement + Wireless Remote Control
The crawler chassis adapts to muddy and uneven construction site surfaces, ensuring
stable movement; remote control for start/stop, speed adjustment, and steering ensures
safe and convenient operation.
4. Strong Adaptability to Working Conditions
Maximum cutting depth of 500mm for road cutting; the wire saw is compatible with
standard diamond wire, enabling multi-angle and high-thickness cutting.
5. Static and Non-Destructive Operation
Cutting is vibration-free and low-noise, producing clean cuts without damaging
surrounding existing building structures.

Strength:
1. Multi-functional, reducing equipment procurement costs
2. Adaptable to various construction site needs, wider order range
3. Convenient relocation, saving on transportation and labor
4. Shared power system, simplified operation and maintenance
5. Complementary working conditions, no blind spots in operation
