ISO9001 Certified Polyurethane Dewatering Screen Panel for Efficient High-Strength Mineral Processing Operations

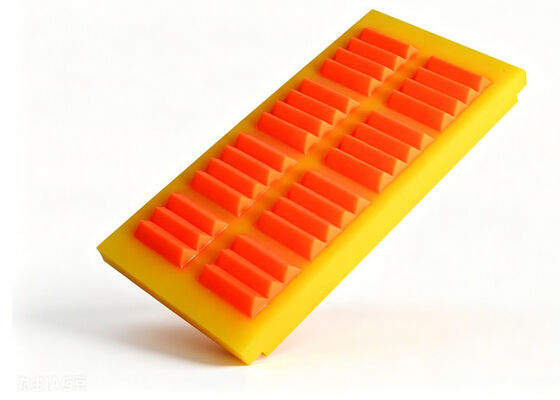

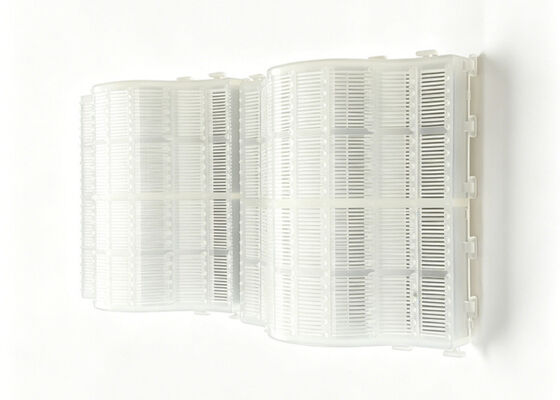

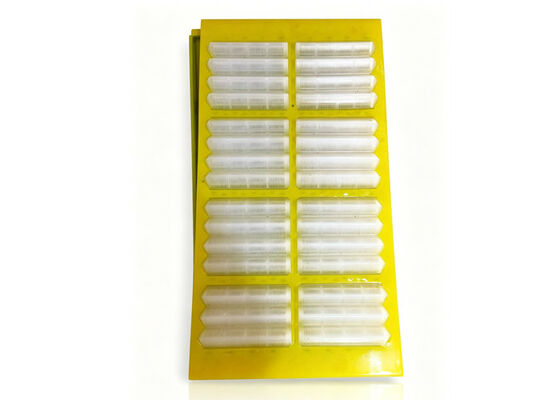

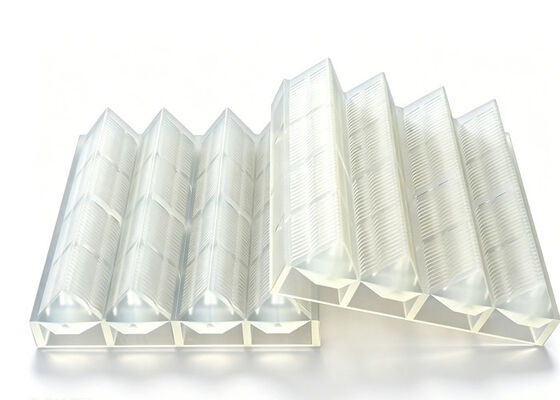

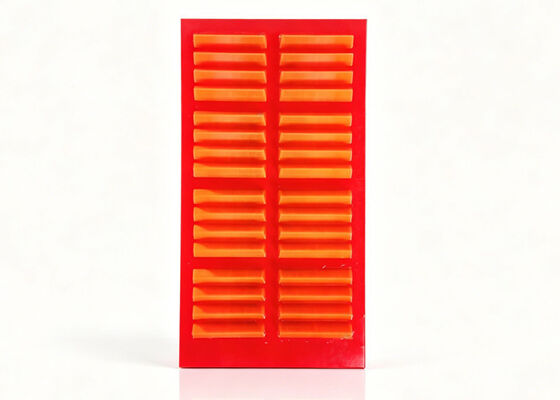

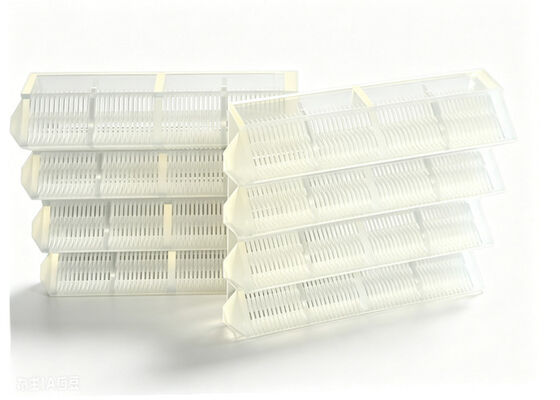

Image Grand : ISO9001 Certified Polyurethane Dewatering Screen Panel for Efficient High-Strength Mineral Processing Operations

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Huatao
Certification:	ISO9001, CE
Numéro de modèle:	Panneau d'écran en PU
Document:	2026-Huatao Catalogue of Mi...on.pdf

Conditions de paiement et expédition:

Quantité de commande min:	5 pièces
Prix:	USD 35 - 45/Piece
Détails d'emballage:	Emballage standard d'exportation
Délai de livraison:	5-7 jours
Conditions de paiement:	T / T, Western Union, L / C, D / A, D / P
Capacité d'approvisionnement:	10000 pièces par mois

Contact

Description de produit détaillée

Matériel:	Matériel de polyuréthane et cadre en acier inclus	Taille d'ouverture:	0,1 mm – 130 mm
taper:	Série Ws85, Ls	Épaisseur:	30 mm, 40 mm, 50 mm
Spécification:	OEM	Capacité de production:	10000 pièces/mois
Augmentation de la zone d'écran:	50 % (crête stéréoscopique)	Dureté:	65 - 91 rive A
Différence de pression maximale:	2 180 kPa	Taille maximale de l'alimentation:	30mm
Mettre en évidence:	ISO9001 certified polyurethane dewatering screen , high-strength mineral processing screen panel , polyurethane screen panel with warranty

ISO9001 Certified Polyurethane Dewatering Screen Panel for Efficient High-Strength Mineral Processing Operations

Product Overview

This high-strength polyurethane dewatering screen panel is an essential component for modern mineral processing and mining facilities. Engineered with a robust, high-tensile embedded steel frame, this panel offers unparalleled structural integrity under heavy deck loadings. The surface is manufactured from specially formulated wear-resistant polyurethane, which provides a service life 3 to 8 times longer than traditional metal meshes, significantly reducing maintenance downtime and operational costs. With thickness options of 30mm, 45mm, and 50mm, it is designed to withstand the rigorous demands of iron ore, coal, and copper classification. The precise slot openings, ranging from 0.1mm to 2.5mm in width and up to 16mm in length, ensure high-precision separation of fine-grained materials. Furthermore, its modular design allows for quick setup and replacement, fitting standard vibrating equipment with widths like 305mm and 515mm. By utilizing this PU screen, operators benefit from a 40% higher dehydration rate compared to plane screens, alongside a noise reduction of 5 to 20 dB, promoting a safer and more efficient working environment.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
