Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Chine HUATAO LOVER LTD certifications
Chine HUATAO LOVER LTD certifications
La société de Huatao est une société très bonne, je suis très disposée à coopérer avec vous, coffre-fort, efficace, professionnel, honnête, heureux ! Merci de me fournir le service stable et les produits. -----EUROPAT

—— EUROPT INDUSTRIEL

Je suis en ligne une discussion en ligne

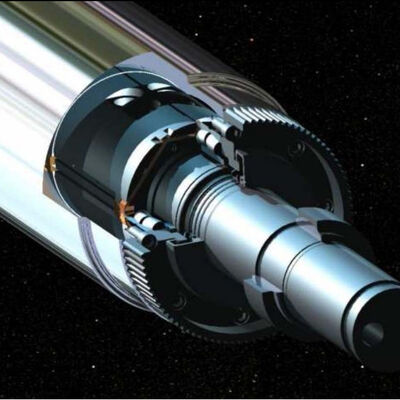

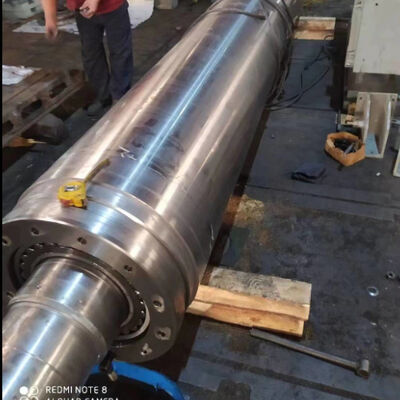

Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness
Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Image Grand :  Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: HUATAO
Certification: ISO CE
Numéro de modèle: HT-SCR01
Conditions de paiement et expédition:
Quantité de commande min: 1 pièces
Prix: 2000USD/pc-5000USD/pc
Détails d'emballage: caisse en bois
Délai de livraison: 60 jours
Conditions de paiement: LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement: 50 PC / mois
Description de produit détaillée
Nom du produit: Système de circulation de l'huile, rouleau calandrier à bout doux en caoutchouc revêtu Mots clés: Rouleau à calandre à coude douce
Dureté du revêtement: 91 ± 2 Rive D Type de couverture: combinaison CHINE Andritz Jalon Jaune
À l'intérieur de la coquille: pour affiner Ra0.4 Rugosité de la surface du rouleau: Ra0,1 mm
Fin de bande de surface de petit pain: ≤0.02mm Matériau de la coque: acier à forger 45#
Mettre en évidence:

Système de circulation d'huile pour rouleaux industriels

,

Rouleau de calandre à cylindres tendres 91 Shore D

,

Rugosité de surface du rouleau de calandre Ra0.1

Oil Circulation Flow System Soft Nip Roll Calender Rubber Coated
Product Description

The Rubber Coated Calender Roller with Oil Circulation Flow System forms a nip that replicates the surface of tempered rolls with hard surfaces, enhancing paper properties. Custom rubber coatings are available, including STOWE, Andritz Jalon Yellow, and others, with guaranteed quality.

Technical Specifications
Specification Details
Shell material Forge steel 45#
Roll face length Customized
Cover width Customized
Cover thickness Customized
Cover hardness 91±2 Shore D
Cover type Combination CHINA Andritz Jalon Yellow
Shell inner Honing Ra0.4
Roll surface runout ≤0.02mm
Metal seals Germany
Roll balancing 900 m/min(G1.0)
Drive type Toothed belt drive AT20, Z=63
Bearing Specifications
  • Spherical roller bearing: 2pcs
  • Bearing type: SKF/FAG
  • Joint ball bearing & Bearing house: 1 set (drawing supplied by client)
  • Static test after roll assembly for leakage detection
  • Max test pressure: 10bar
  • Dynamic simulation after roll assembly for deformation detection
Differential Pressure Regulation Head
  • Function: Regulates pressure in the Swimming Roll to control correct deflection
  • Equipment location: Front side of the Swimming Roll
  • Proportion regulation air cell: 1pc
  • Piston rod: 1pc
  • Bearing (INA): 1pc
  • Seal parts: Germany
Assembly Tools
  • Disassembly and installation tool of swimming roll: 1 set
  • Guide Sleeve: 1pc
  • Guide screw: 1 Set
Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness 0
About Huatao Group

Founded in 2008, Huatao Group is a professional supplier of various rollers for paper, corrugated board, rubber & plastic, and nonwoven fabric industries with over 15 years of experience.

Our Product Range
  • Paper Industry: Forming roller, vacuum couch roller, dandy roller, Breast Roller, press roller, stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller
  • Plastic & Rubber: Chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller
  • Nonwoven Fabric: Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller

With a commitment to innovation and reliability, our products are exported to over 96 countries. We understand unique customer requirements and match them with superior quality products from our network of domestic factories, ensuring customers buy and use HUATAO products with confidence.
